Hybrid Photovoltaic &
Hot Water Generation
One Panel – All Your Energy Needs

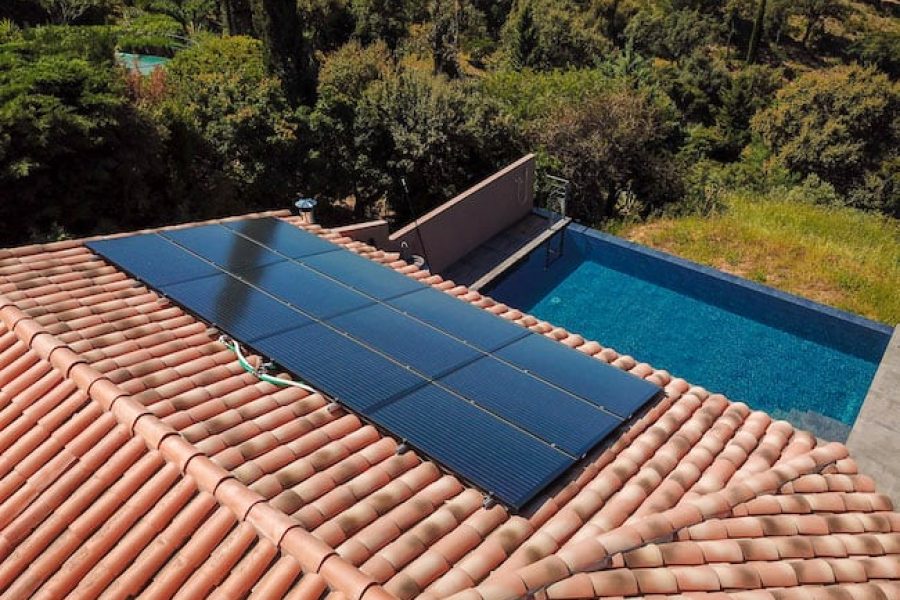

Generate Electricity Whilst Heating Your Swimming Pool
Maximise on Available Roof Space & Energy Production
Revolutionary Award Winning Hybrid Solar Panel
French Innovation & Manufacturing
The DualSun Hybrid Solar Panels combine photovoltaic electricity generation on the front, and solar thermal hot water production on the rear of the solar panels.
A three way valve & intelligent temperature control manages the water circulation to heat your swimming pool, with temperature control via a digital panel in your pump house, or via a smart phone app.
The photovoltaic power generation can either provide power for your pool pump house & outdoor energy requirements, or can be connected into your household mains DV board.
As photovoltaic cells work best when the solar panels are cold, in effect, the large capacity of the swimming pool acts as a reservoir to keep the solar cells and front of the solar panels cool and operating optimally, increasing their PV generation by as much as 15%.
Energy Autonomy For Your Swimming Pool
Twice the Quantity of Energy per m² as a Standard Solar Panel
Cooling of PV Cells = Higher Efficiency
Benefits
Having a warm swimming pool, using free energy from the sun, is life changing… and will have many positive effects for you & your family !
Generate electricity while heating your swimming pool.
Maximise on available roof space – one panel two energies.
Increased PV power generation efficiency & solar panel life due to cooling.
Massively extended swimming season.
Significantly more swimming pool enjoyment.
Increased property value and rentability.
Once off installation cost.
Zero additional running costs – uses existing pool pumps to circulate the water.
No moving parts.
Takes filtered water so no chance of blockages.
Low maintenance – monthly visual check and annual service call.
Intelligent temperature control.
Completely silent.
Technical Info
Photovoltaic
The 425 Wp PERC mono-crystalline 320-cell solar panel has standard panel dimensions of 1 899 mm x 1 096 mm x 30 mm
Cooled by water circulation on the rear side, the solar panels have a weight of 35 kg each, when full.
Thermal
The ultra thin heat exchanger is integrated into the back of the solar panel, allowing heat transfer from the photovoltaic front side, to the water circulation on the rear side.
The thermal-power module has a power of 660 W-thermal per square meter and a gross area of 2.08 m². Its heat-transfer liquid volume is 5 litres with a maximum operating pressure of 1,5 Bar.
Maximum temperature non-insulated 80°C, insulated 90°C
Solar Keymark & IEC Certified
